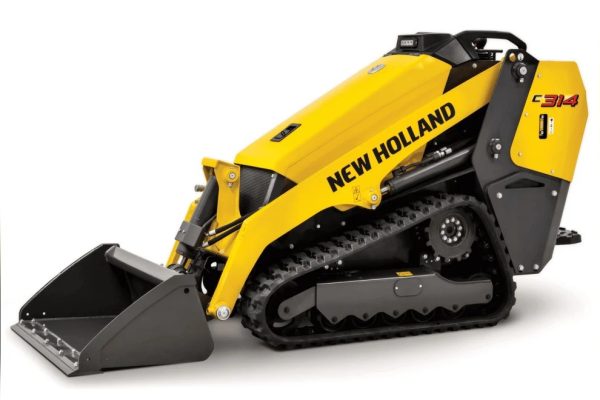

New Holland C314 Mini Track Loader

$57,699

Main Phone:

844-232-0502

Ditch the shovel, wheelbarrow and all the hard manual labor that goes with them — New Holland’s mini track loader is all the equipment you need. The C314’s impressive rated operating capacity and weight help check more jobs off your residential construction or landscaping to-do list. Plus, its narrow frame means there’s no sacrificing top-grade performance in small spaces.

Inquire About Vehicle
featured (12)
ModelKubota D1305-E4B
Emissions CertificationStage V
Cylinders3
Displacement77.0 cu. in. (1.261 L)
FuelDiesel
Exhaust aftertreatmentN/A
Engine speeds Rated – full loadRPM 2600
Horsepower @ 2600 RPM – SAE J1349 – Gross24.8 hp (18.5 kW)
Horsepower @ 2600 RPM – SAE J1349 – Net24 hp (18.0 kW)
Peak torque @ 1700 RPM59.1 lb. ft. (80.1 N·m)
Overall Height56.5 in. (1 435 mm)
Overall Length Without Bucket85.6 in. (2 175 mm)
Machine Width Narrow Track35.0 in. (890 mm)
Machine Width Wide Track40.4 in. (1 026 mm)
Bucket Width Narrow Track36.0 in. (914 mm)
Bucket Width Wide Track42.0 in. (1 067 mm)
Implement pump typeFixed Gear
Displacement1.2 cu. in. (19 cc)
Standard flow @rated engine RPM @ 100% efficiency13.2 gpm (50 L/min)
Loader control valve TypeOpen center
Implement Hydraulics Operating Pressure2,800 psi (190 bar)
Fuel Tank7.9 gal. (30 L)
Engine oil w/ filter6.0 qt (5.7 L)
Hydraulic system4.5 gal. (17 L)
Engine Coolant0.9 gal. (3.5 L)
Transmission TypeHydrostatic
Max. Travel speed4.7 mph (7.5 kph)
Parking brake TypeSAHR pin brake
System Voltage12 Volts
Alternator60 amp
Battery62 AHR 540 cold-cranking amps @ 0 deg. F (-18 deg. C deg.)
Narrow Track (NT) 2X Counterweights (STD)3,536 lb. (1 604 kg)
Wide Track (WT) 6X Counterweight (OPT)3,783 lb. (1 716 kg)
Lift GeometryRadial Lift
Narrow Track Rated operating capacity – ROC* – 35% of tipping load992 lb. (450 kg)
Narrow Track Rated operating capacity – ROC* – 50% of tipping load1,416 lb. (643 kg)
Narrow Track Tipping load*2,833 lb. (1 285 kg)
Wide Track Rated operating capacity – ROC* – 35% of tipping load1,102 lb. (500 kg)
Wide Track Rated operating capacity – ROC* – 50% of tipping load1,574 lb. (714 kg)
Wide Track Tipping load*3,148 lb. (1 428 kg)
